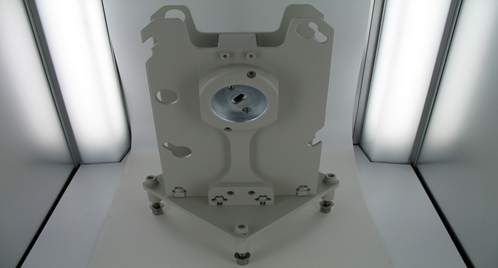

Hot Standby Couplers
These combiners/couplers are used in Digital Microwave Radio Point-to-Point and Multipoint Fixed Wireless Systems. They incorporate a Coupler, Antenna Interface, Radio Mounting Interfaces and Polarizers. Apollo can accommodate a variety of specific requirements relating to size, mechanical configuration, and frequency range, resulting in a cost effective solution for microwave links.

Features
  • 7 to 38 GHz
  • Eliminates need for flexible waveguide
  • Quick connect and disconnect
  • Ability to change polarization
  • Pressurized to 6 PSIG without water leakage
  • MIL-STD-810E Method 512.3
  • MIL-STD-810F Method 506.4, Procedure 1 Severity:25 to 30m/s, Rainfall rate 1.7mm/min, Duration 30 min/side (4 sides)
  • ASTM B117-90 > 500 Hours
  • Operational: 90mph (150km/h); Survival 125mph (205km/h)
  • Weight: Less than 18 lbs
  • Operating temperature -40° C to +70° C
  • Aluminum construction
  • RoHS compliant
